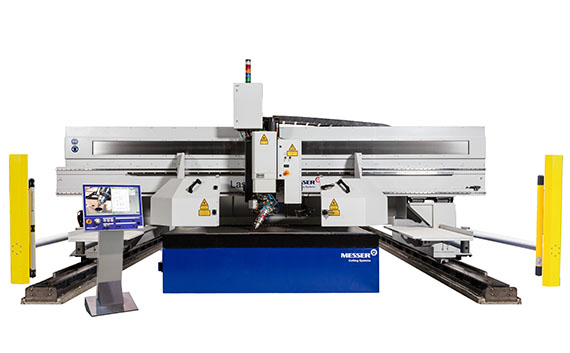

Do you want to increase your production competence further through efficient large area processing? The LaserMat® II is the specialist for precise CO2 laser processing in XXL format. The premium CO2 laser system can process large format areas of z. B. 20 m x 4.5 m – and that automated in one operation! As well as perfect simple vertical cuts, bevel cuts are also possible and various marking options are available.

  • Newest CO2 laser technology
  • Best cut surfaces for up to 20 mm thick Stainless and 25 mm thick Mild Steel
  • Beam path length compensation
  • Consistantly high cut quality over the entire operating area
  • Ultra-short hole piercing and optimisation of smallest contour
  • On-board CO2 resonator:
  • Unrestricted working lengths of over 50 m
  • Working widths up to 4,5 m
  • Infinitely rotating bevel heads with continuous angle adjustment: Continuous bevels from -45° to + 50°
  • Maximum dynamics

Contact

Messer Cutting Systems (China) Ltd.


528 Nanbang Road
Kunshan 215300
Jiangsu Province
China

+86 512 57314949
e-mail

Downloads

Solution Modules

Messer Cutting Systems is the solution provider for the metalworking industry. In addition to cutting machines and oxyfuel technology, we offer software solutions, spare parts and a wide range of services.

We are sure that we will find the right solution for your individual requirements. Contact us, we will reply to you as fast as possible.

Training

Training


More

Learn more

The LaserMat® II excels in high positioning speeds and accuracy because of its rigid construction and linear guides. It also makes it possible to process plates 3 m x 12 m – and that in one operation.

With working widths of over 4 m and working lengths up to more than 50 m, the system is predestined for large format plates. The CNC controlled laser processing system offers high part accuracy due to linear guides for longitudinal and transverse motion. The laser beam is guided in the transverse direction via moving mirrors with 100% beam path length compensation and thus ensures a consistently high processing quality. The colour camera which is directed at the cutting head makes possible easy observation on the screen alongside the operating panel.

In contrast to a fibre laser system, with a CO2 laser a full enclosure is not necessary. The on-board laser beam protection hood guarantees laser safety class 1 and thus makes access for loading and unloading possible even during the cutting Operation.

Have you any questions about our cutting machines or would you like more information about any aspect of our product range? As suppliers of solutions to problems for the metalworking industry it is extremely important to us that we always offer you the best solution for your individual requirements. Contact us and we will reply to you as fast as possible.
